Fine Pixel --HD Series

HD Series 16:9 LED display Unit

Combined with the latest narrow pixel pitch led technology and advanced mechanical design, our engineers made HD series with superior visual performance, Light weight and easy to install and maintain.

Perfect Aspect Ratio

The cabinets are designed in16:9 ratio so when horizontal and vertical cabinets are the same, the result is the most popular aspect ratio - i.e. 3 x 3 = 16:9 and 5 x 5 = 16:9

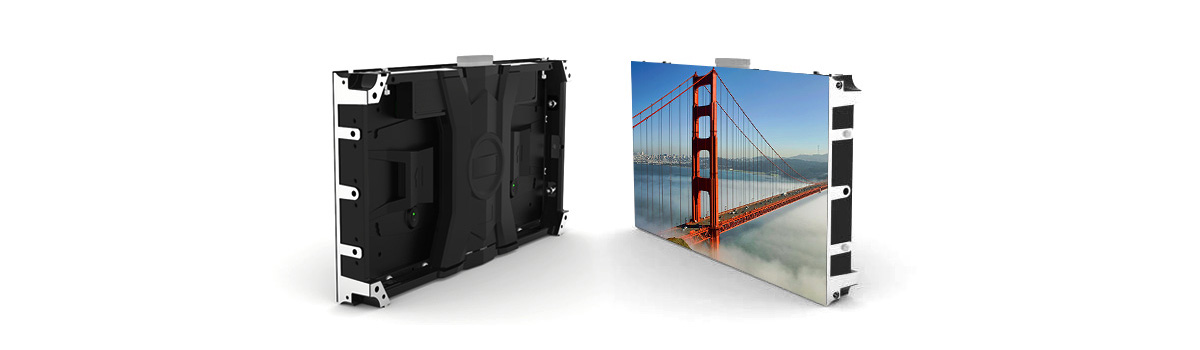

Intelligent choice of Full Front OR Rear service access cabinet designs.

Ultra slim and light weight for super-efficient installation.

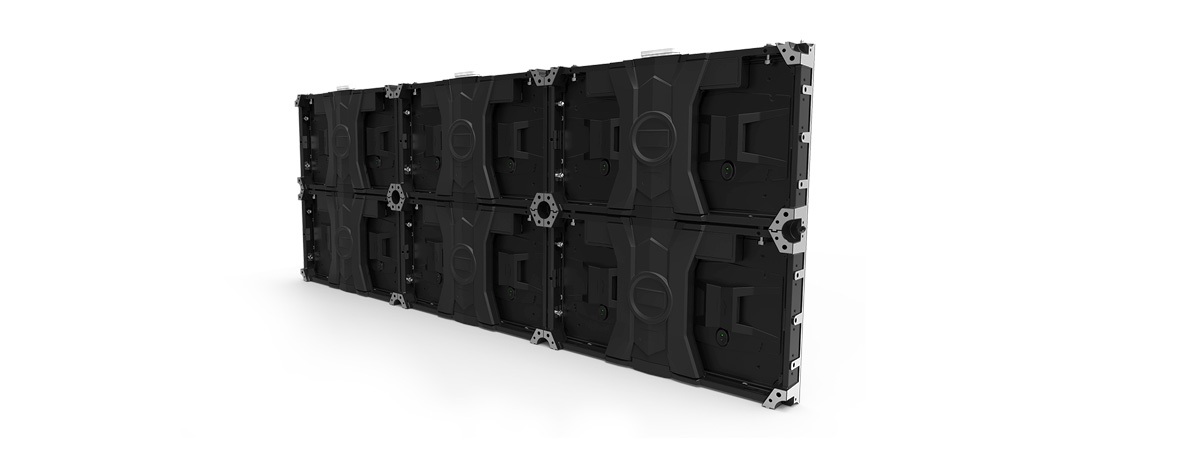

Usage scenarios include

Wall mounted
Floor stacking
Even Concave option

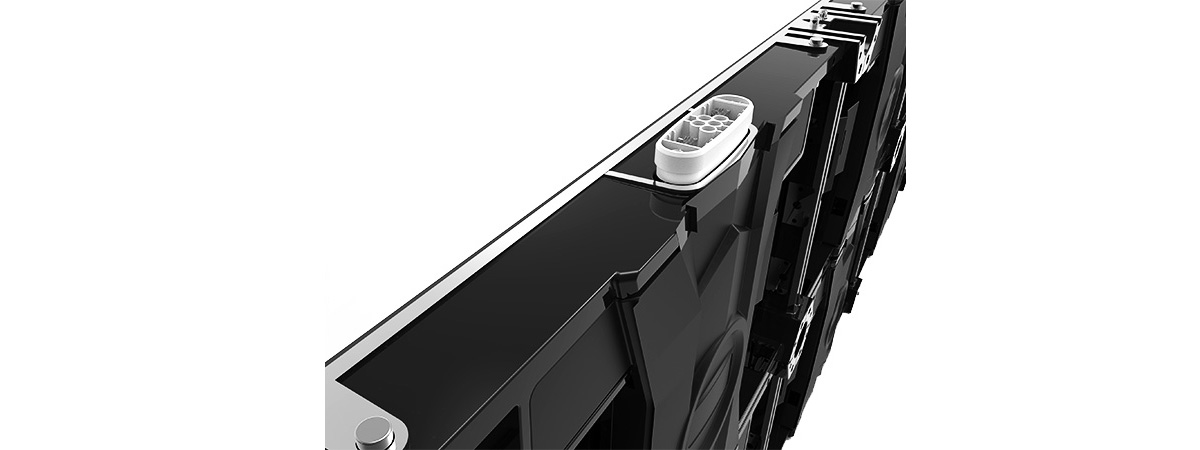

Integrated Connector ports for wire free installations, It not only looks good but also improves security and stability of the display.

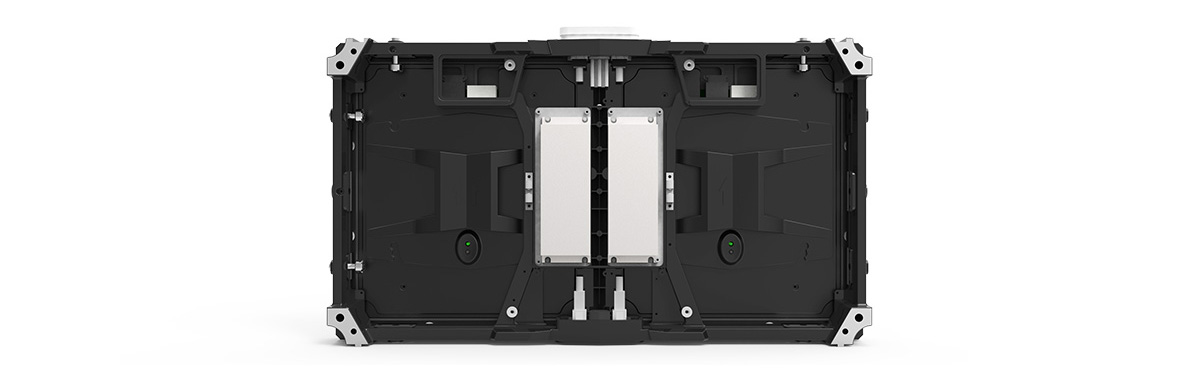

Redundant power supply units options for mission critical environments.

Led Panel Spec. Pixel pitch 0.9375mm 1.25mm 1.5625mm 1.875mm 2.5mm
Pixel Density(dot/m²) 1137777 640000 409600 284444 160000
Panel Dimention(WxH*D) 600*337.5*66mm
True HD capable 3*3 4*4 5*5 6*6 8*8
Material Die casting
Panel Weight(Kg) 6.3Kg
Servicibility Front and Rear serviceable compatibility
Brightness(m²) 800 nits(After calibrated, 6500K color temperature)
Contrast ≥7000:1
View Angle(50% brightness) 160° Horizontal, 140° Vertical
Electrical Spec. Power Consumption(Max/m²) ≤665W
Power Consumption(Avg.m²) ≤265W
Operation Voltage AC100-240V(50-60Hz)
Processing Refresh Rate ≥3840Hz
Gray Scale ≥16bit
