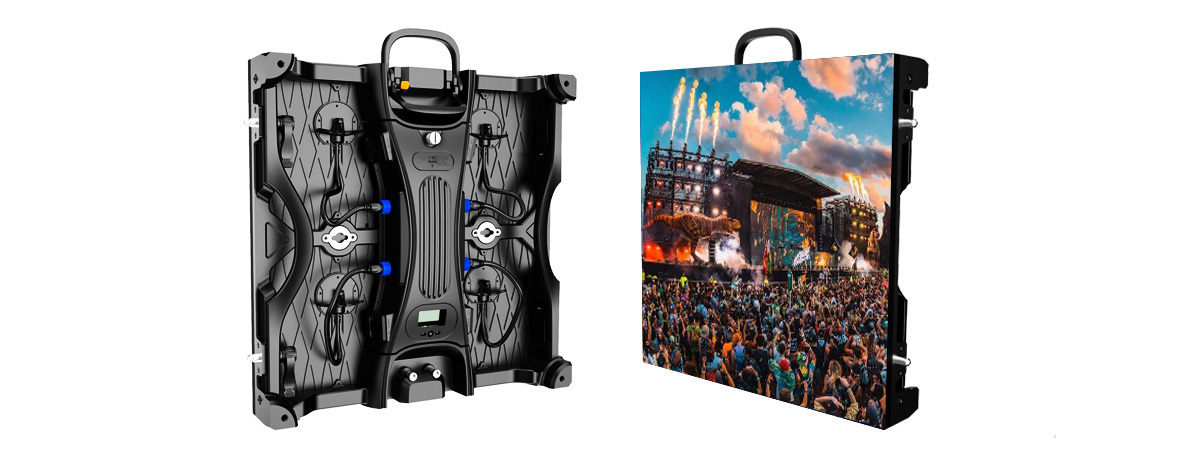

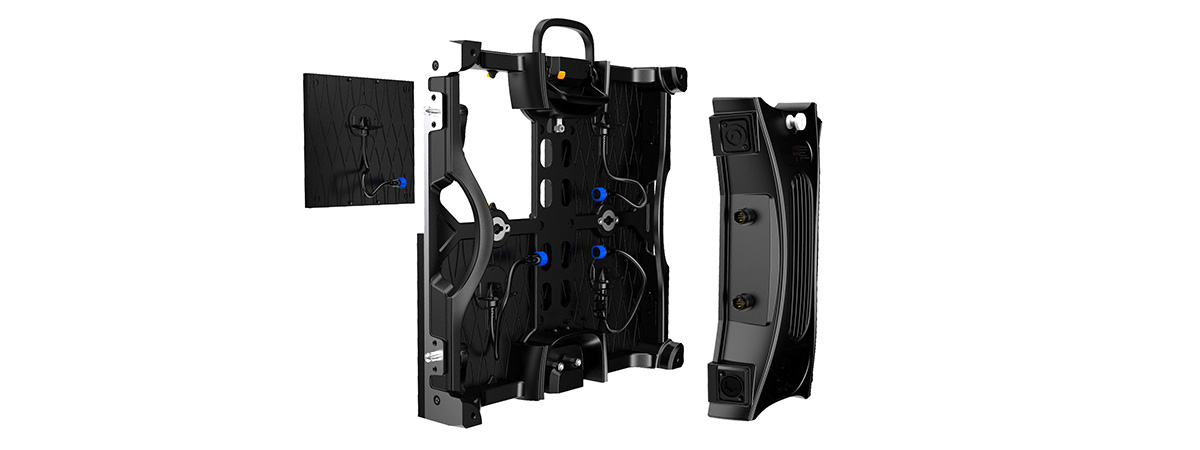

Fully Independent Modular Design
Magnetic modules and independent control box design makes the installation and uninstallation process a breeze. With the Front and Rear accessibility feature, replacing modules and maintenance tasks are also simplified.

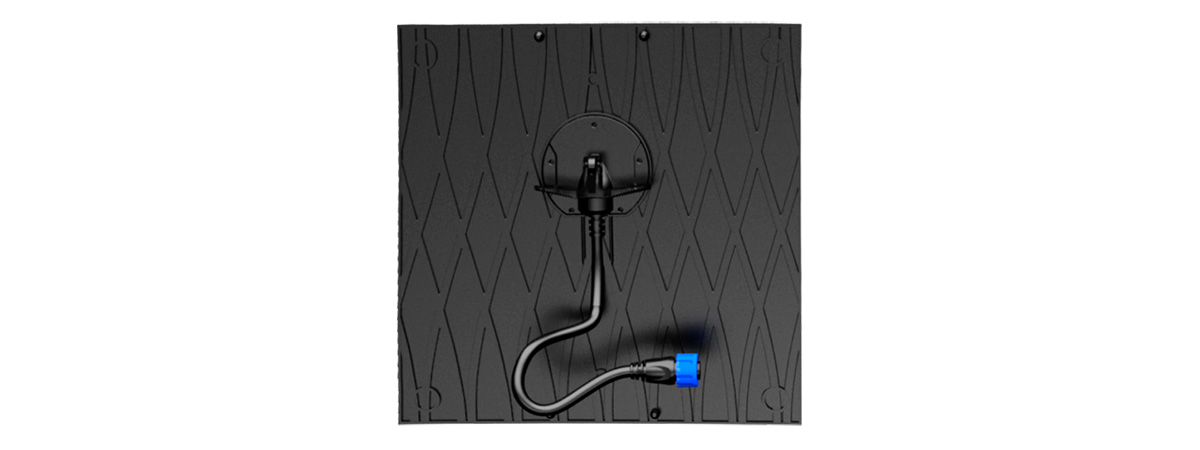

Integrated cabling system
Power and Signal feature integrated connector design. With IP67 waterproofing, shockproof and stable cabling connection between modules and control box, the product reduces failure rate by up to 90%.

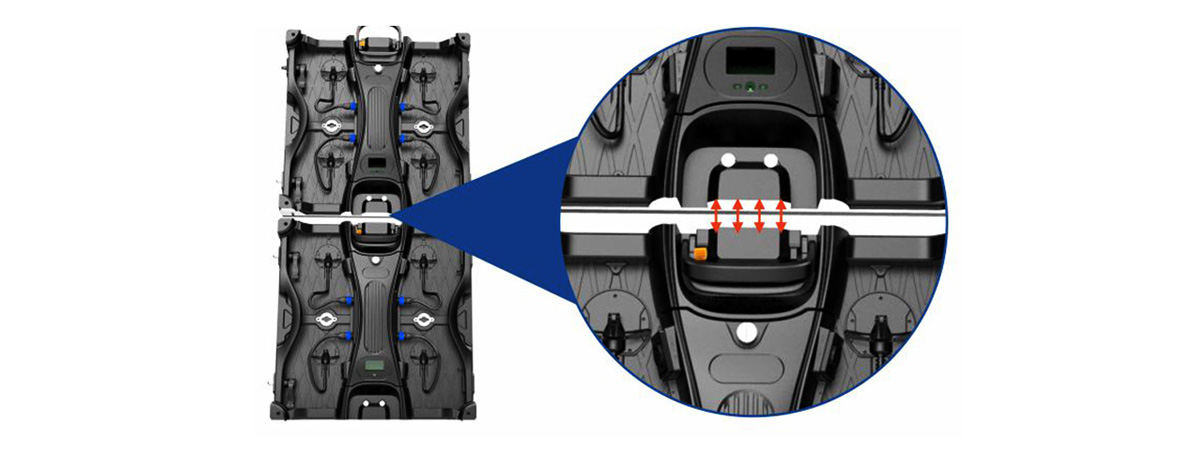

Single Person Operation
Magnet-assisted assembly enables automatic positioning, requiring only a single person to install / uninstall the display leading to further savings on labor cost.
Innovative Angle Adjustment Lock System
Re designed locking system with inner and outer arc from 0︒ to ±5° to ±10° for that fine tuning needs.

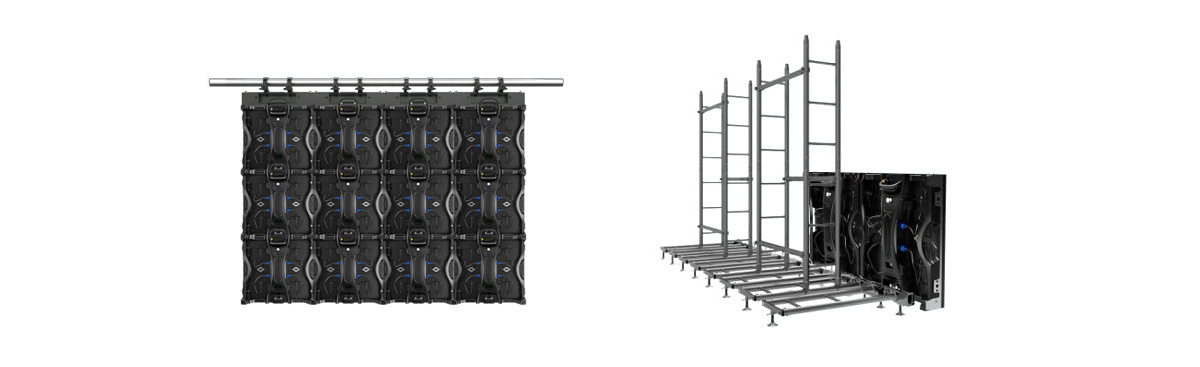

Complete installation hardware
Installing LED display becomes a simple job with our ancillary Hanging and Stacking structure components.
Led Panel Spec.
|
Pixel pitch
|
2.8mm
|
3.9mm
|
3.9mm
|
4.8mm
|
Application
|
Indoor
|
Indoor
|
Outdoor
|
Outdoor
|
Pixel Density(dot/m²)
|
123904
|
65536
|
65536
|
43264
|
Panel Dimention(WxH*D)
|
500*500*85mm
|
19.6*19.6*3.3inch
|
Material
|
Die casting
|
Panel Weight(Kg)
|
≤7.5
|
≤7.5
|
≤7.8
|
≤7.8
|
Servicibility
|
Front and Rear serviceable compatibility
|
Brightness(m²)
|
≥800
|
≥1000
|
≥5000
|
≥5000
|
View Angle(50% brightness)
|
140° Horizontal, 140° Vertical
|
Electrical Spec.
|
Power Consumption(Max/m²)
|
500W/m²
|
480W/m²
|
600W/m²
|
560W/m²
|
Power Consumption(Avg.m²)
|
200W/m²
|
190W/m²
|
250W/m²
|
220W/m²
|
Operation Voltage
|
AC100-240V(50-60Hz)
|
Processing
|
Refresh Rate
|
1920~3840
|
Gray Scale
|
≥16bit
|
Operation condition
|
Operating Tem/Humifity
|
-20℃~50℃, 10~90%RH
|
Storage Tem/Humifity
|
-40℃~60℃, 10~90%RH
|
IP Rate
|
IP31 for Front/ Back
|
Front IP65 / Back IP54
|
