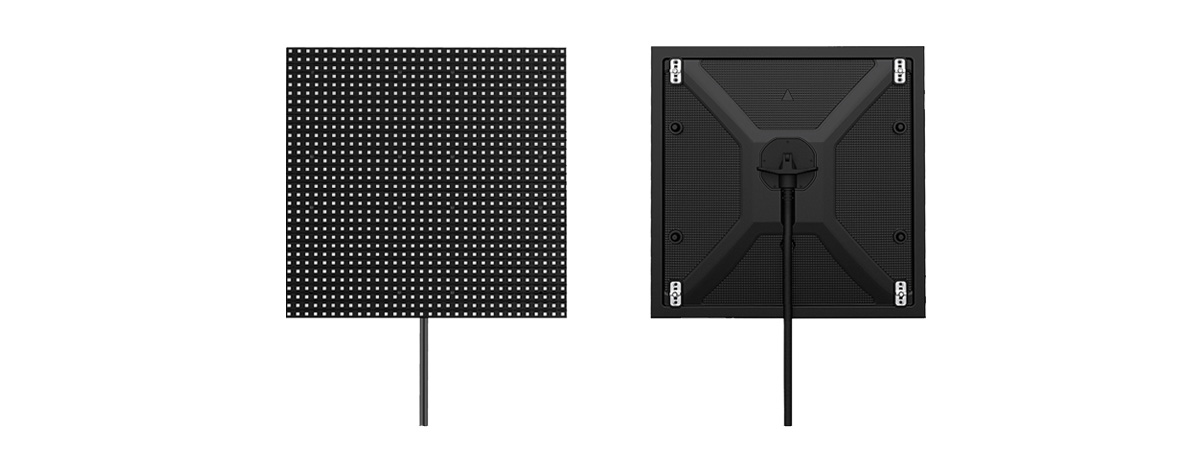

Outstanding protection with Superior grade sealed module design
Front & back sealed module achieving IP67 water-proof and dust-proof

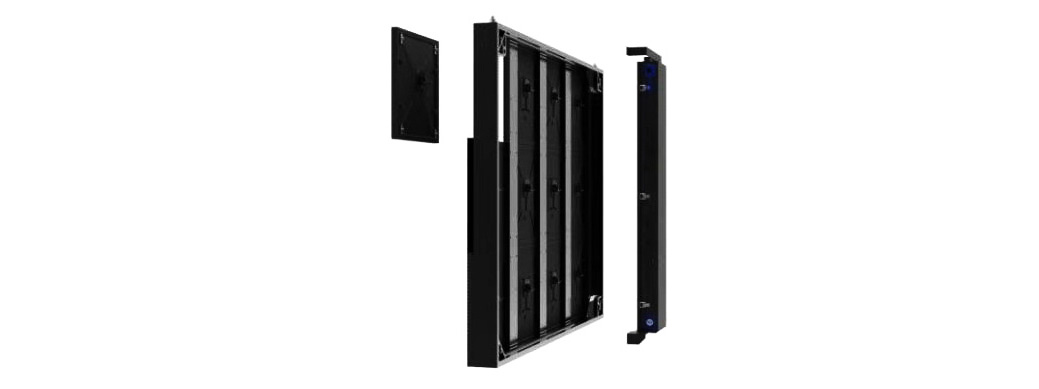

Modular design

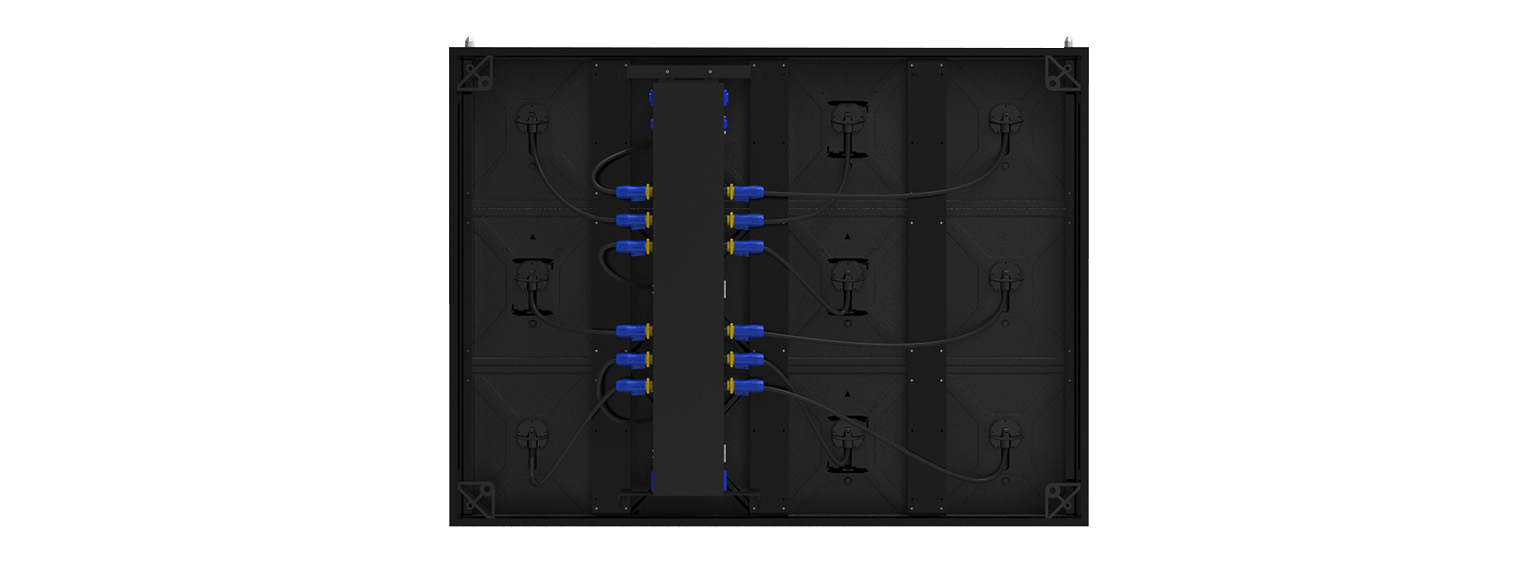

Independent module and power box allows replacement of components in a matter of seconds. Integrated Signal & Power cable technology halves maintenance time

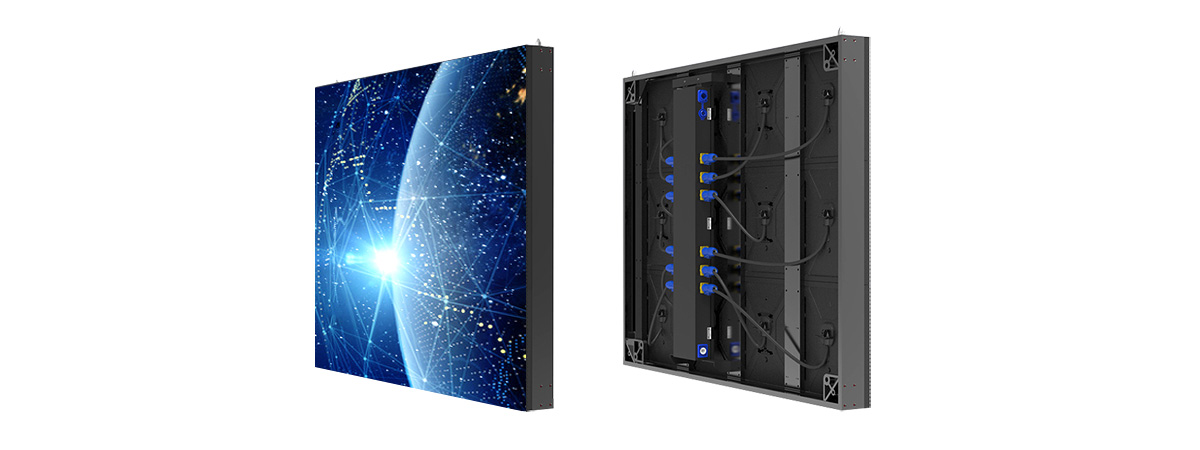

Mounting point embedded cabinet structure enables optional front & rear installation possibilities.

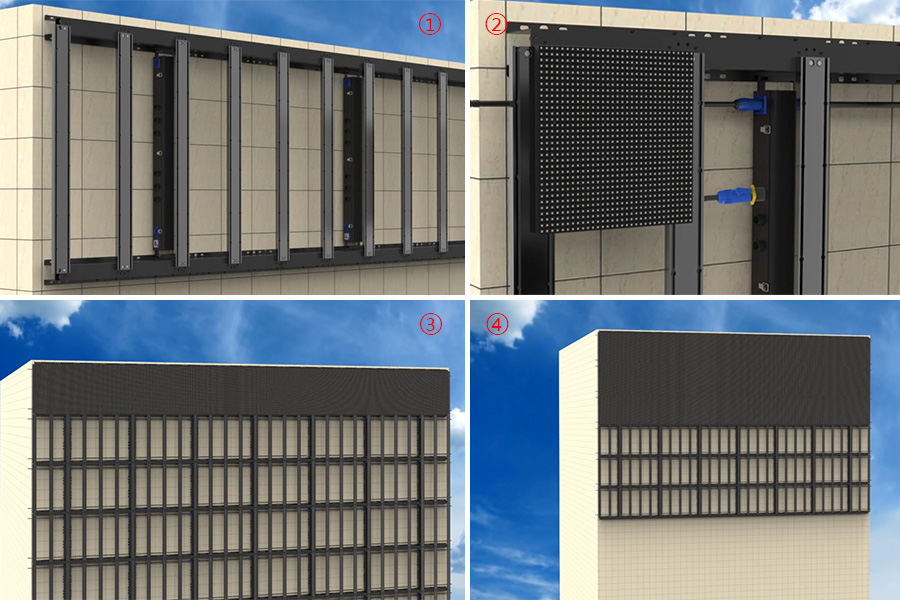

Conscious Design approach for Easy and cost effective Wall Mounting applications
Eliminates the dependence on 3rd party structures. Cabinet design enables fixing the modules and power box on the wall directly through the U-pipe.
Led Panel Spec.
|
Pixel pitch
|
4mm
|
5mm
|
6mm
|
8mm
|
10mm
|
Pixel Density(dot/m²)
|
62500
|
40000
|
24414
|
15625
|
10000
|
Panel Dimention(WxH*D)
|
1280*960*110mm
|
50.3*37.8*4.3inch
|
Material
|
Aluminum profile
|
Panel Weight(Kg)
|
《32Kg
|
Servicibility
|
Front and Rear serviceable compatibility
|
Brightness(m²)
|
≥4500cd/m²
|
≥5500cd/m²
|
≥6500cd/m²
|
≥6500cd/m²
|
≥6500cd/m²
|
View Angle(50% brightness)
|
140° Horizontal, 140° Vertical
|
Electrical Spec.
|
Power Consumption(Max/m²)
|
600W/m²
|
480W/m²
|
500W/m²
|
530W/m²
|
450W/m²
|
Power Consumption(Avg.m²)
|
250W/m²
|
190W/m²
|
200W/m²
|
210W/m²
|
480W/m²
|
Operation Voltage
|
AC100-240V(50-60Hz)
|
Processing
|
Refresh Rate
|
1920~3840
|
Gray Scale
|
≥16bit
|
Operation condition
|
Operating Tem/Humifity
|
-20℃~50℃, 10~90%RH
|
Storage Tem/Humifity
|
-20℃~50℃, 10~90%RH
|
IP Rate
|
Front:IP65 Back:IP65
|
