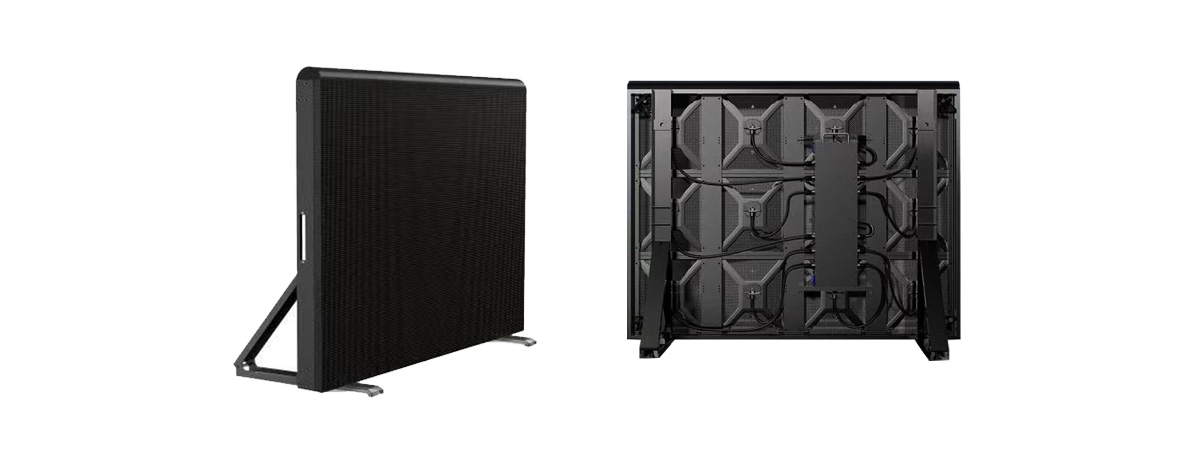

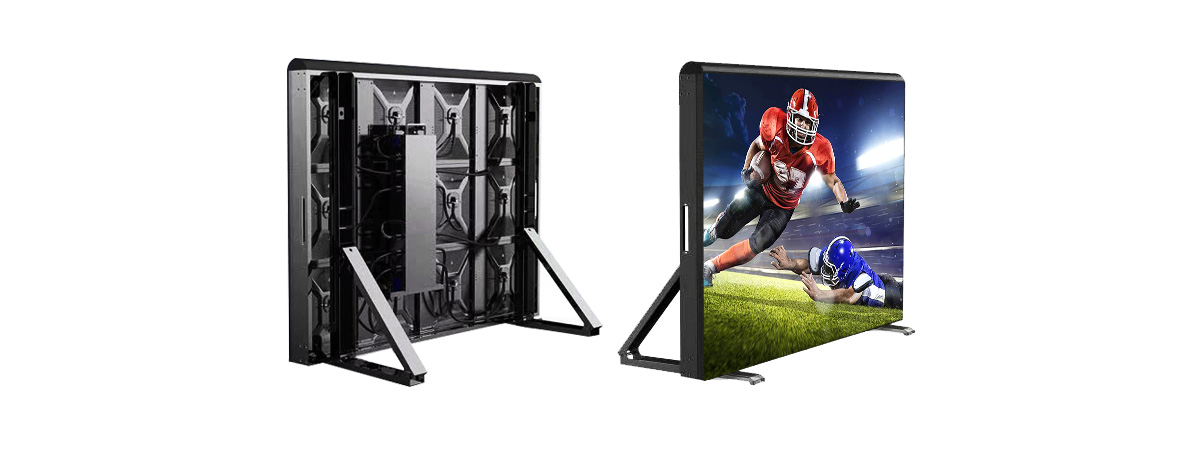

Sports--Sportura Series
Ultimate choice for the highest standards expected in the sporting industry
With up to 3840 HZ refresh rate the sportura range enables the high-speed camera to capture any HD image of the display without any fade effect. Stunning images and video playback not just for the audience in the stadium but also the fans viewing at home on their televisions.

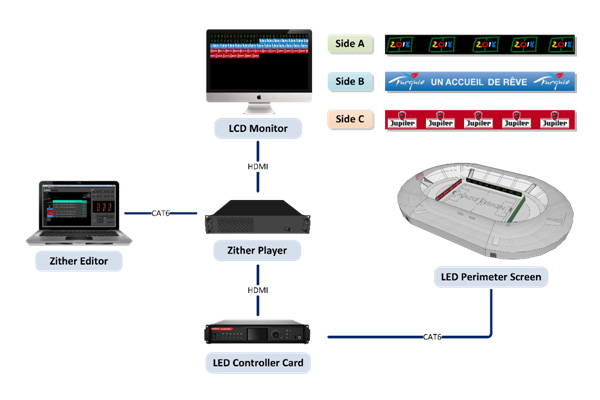

Score keeping software
In addition to hardware we also provide a choice of score keeping software developed by experts in the industry.The sport specific software combined with the sportura display series ensures a successful deployment.

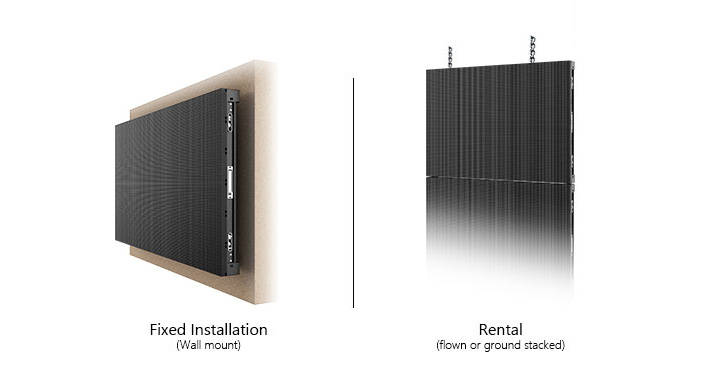

Multi-functional
Whilst the primary usage is for perimeter LED advertising boards the individual cabinets can also be utilized for large format displays to take advantage of on and off-site opportunities

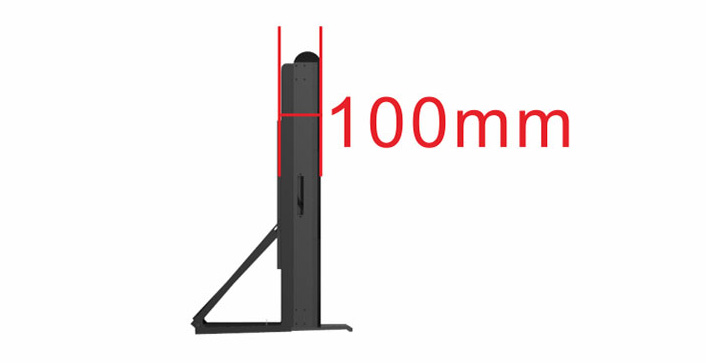

Ultra thin design
With a thickness of 100mm and weighing only 35kg, it is up to 25% less than the nearest, similarly specified product available in market.

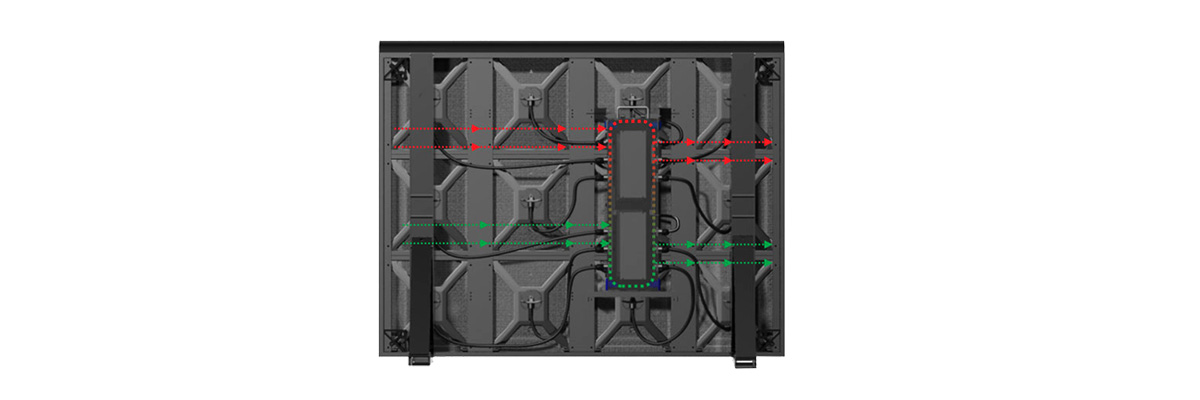

Dual power supply and data backup system
Redundancy technology incorporated for both power and data ensures complete efficiency and reliability for uninterrupted operation securing advertising revenues.

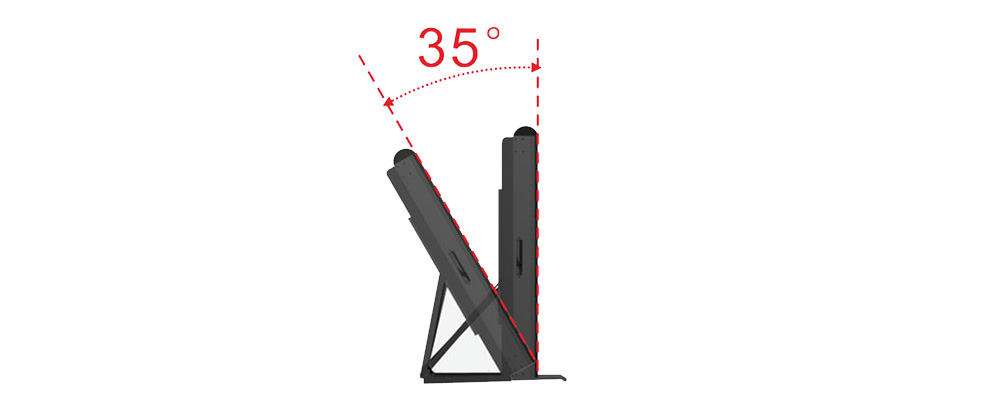

Adjustable angle
With folding and telescopic arms behind the cabinet, design enables the display to be adjusted (0 ~35 degree) according to different applications and achieve the best viewing angle.
EMC Standard
In line with the regulatory requirements, our products can be provided with EMC standards and certification. This is achieved through exacting build qualities, research, development, investment and our professional engineering expertise.
| Led Panel Spec. | Pixel pitch | 4mm | 5mm | 6mm | 8mm | 10mm | |
| Pixel Density(dot/m²) | 62500 | 40000 | 24414 | 15625 | 10000 | ||
| Panel Dimention(WxH*D) | 1280*960*110mm | ||||||
| 50.3*37.8*4.3inch | |||||||
| Material | Aluminum profile | ||||||
| Panel Weight(Kg) | 《32Kg | ||||||
| Servicibility | Front and Rear serviceable compatibility | ||||||
| Brightness(m²) | ≥4500cd/m² | ≥5500cd/m² | ≥6500cd/m² | ≥6500cd/m² | ≥6500cd/m² | ||
| View Angle(50% brightness) | 140° Horizontal, 140° Vertical | ||||||
| Electrical Spec. | Power Consumption(Max/m²) | 600W/m² | 480W/m² | 500W/m² | 530W/m² | 450W/m² | |
| Power Consumption(Avg.m²) | 250W/m² | 190W/m² | 200W/m² | 210W/m² | 180W/m² | ||
| Operation Voltage | AC100-240V(50-60Hz) | ||||||
| Processing | Refresh Rate | 1920~3840 | |||||
| Gray Scale | ≥16bit | ||||||
| Operation condition | Operating Tem/Humifity | -20℃～50℃, 10～90%RH | |||||
| Storage Tem/Humifity | -20℃～50℃, 10～90%RH | ||||||
| IP Rate | Front:IP65 Back:IP65 | ||||||
